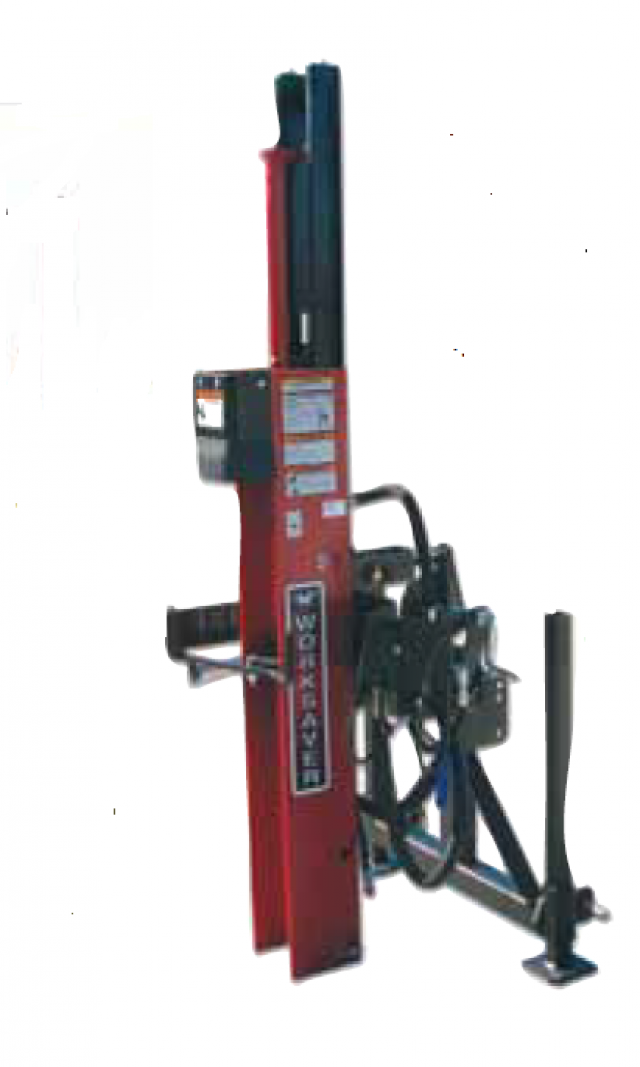

Worksaver post drivers 3 Pt. Hitch

Name: Worksaver post drivers 3 Pt. Hitch
Brand: Worksaver
Availability: InStock

Overview

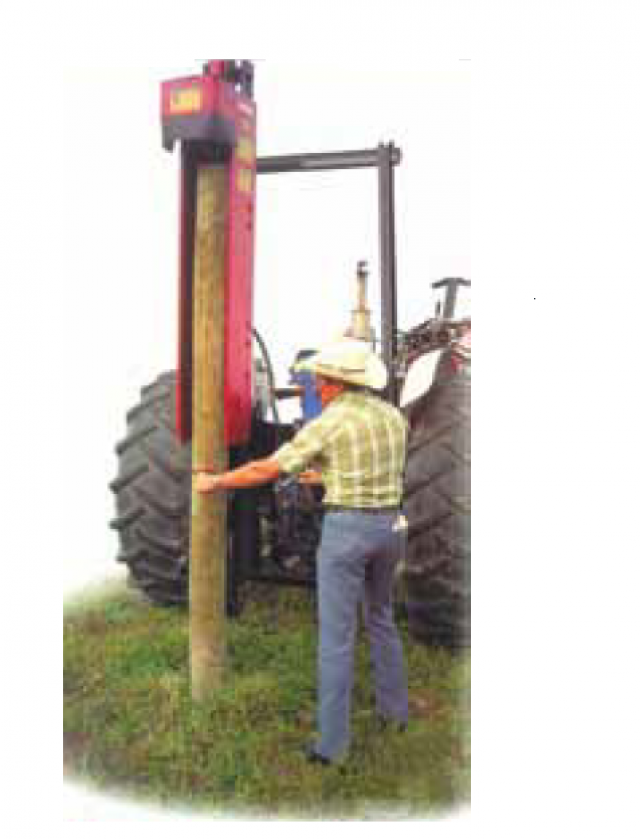

Installing new fencelines? Replacing old ones? worksaver post drivers are
built to last with quality features designed to improve operator convenience,
versatility, production and performance in all kinds of conditions. Available with
either manual adjustment crank or hydraulic cylinder controlled for post
alignment

Specifications

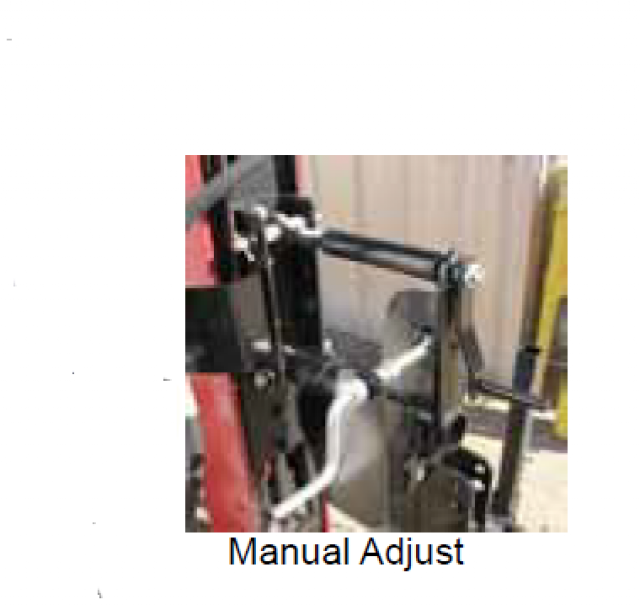

WITH MANUAL ADJUSTMENT

	HPD16	HPD22Q	HPD26Q
Maximum post size	5” x 9’	8 3/4” x 10’	11” x 10’
Impact at full stroke	32,000 lbs.	80,000 lbs.	110,000 lbs.
Impact at half stroke	16,000 lbs.	40,000 lbs.	55,000 lbs.
Hydraulic requirements	3 - 4 gpm	6 - 8 gpm	12 gpm
Minimum tractor size	20 - 22 HP	30 - 35 HP	50 - 55 HP
Hitch Type	Cat. I or II	Cat. I or II	Cat. II.
Weight	600 lbs.	795 lbs.	N/A
List price	$4275	$5899	N/A

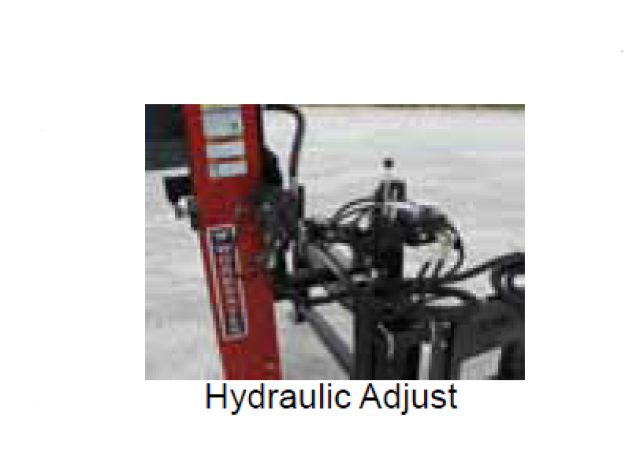

WITH HYDRAULIC ADJUSTMENT

	hpD16shc hp	hp d22Qshc	hpd26Qshc
Tilt Adjustment # of Tilt Cylinders	- Front/Back 17O each way from vertical - Side/Side 20O each way from vertical -Two (2) 3” x 6”
Weight	875 lbs.	1035 lbs.	1215 lbs.
List price	$7299	$8899	$10,789
